E2

E2 - User Guide - First-time setup

Congratulations on receiving your new pair of E2! Use this guide to learn about pairing E2 with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

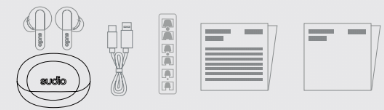

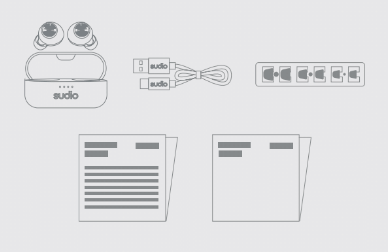

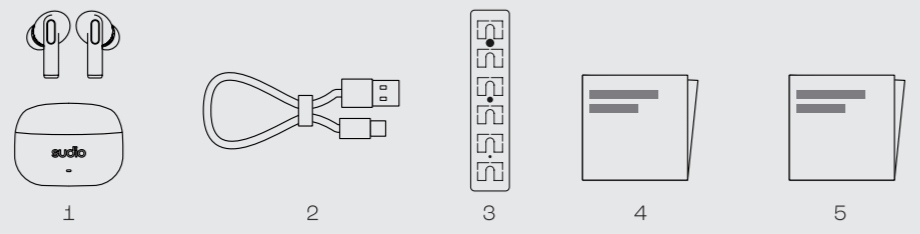

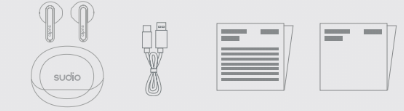

What's included in the box


  • E2 wireless earphones and charging case
  • Interchangeable ear tips in five different sizes: XS, S, M, L & XL
  • Type-C USB-cable
  • Microfiber cloth
  • Owners manual

Before getting started

⚠️  Sudio E2 is delivered with a red protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge E2 before using it for the first time.

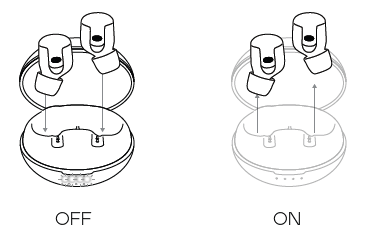

Turning E2 on or off


E2 powers up as soon as the lid on the charging case is opened, as indicated by the LED lights on the earbuds and the audio feedback 🔈 On.

Similarly, E2 is turned off when placing the earbuds back into the case.

You can also use the touch controls to power the earbuds on or off. Do this by holding the touch control for 5 seconds on either earbud.

Pairing with a device

Jump to complete guide

E2 enters pairing mode when opening the lid on the charging case. Open the Bluetooth settings on your device and wait for E2 and the device to locate each other, then select Sudio E2  when it appears in the list. You will hear 🔈 Connected, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on E2; one in the charging case and one in each earbud.

The E2 earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The E2 case is charged with a Type-C USB-cable and can also be charged wirelessly. When the case is charging, you will see a light on the front o the charging case. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring E2 to factory settings

Jump to complete guide


If E2 is behaving unexpectedly or you simply wish to restore it to its original settings, reset it by placing the earbuds inside the case and, with the lid open, press the button on the back of the case for 5 seconds. The reset is complete when the LED light on the front of the case flashes white twice.

You may then proceed with pairing E2 again.

E2 - User guide - Connectivity & Pairing

Sudio E2 enters pairing mode immediately when opening the lid on the charging case. When pairing E2 for the first time, you hear 🔈 On followed by 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device.

⚠️  Sudio E2 is delivered with a red protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

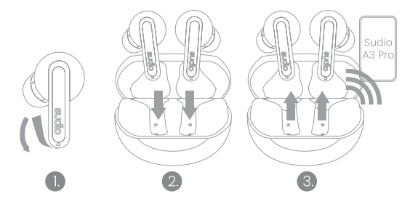

Pairing E2 with a device

  1. Remove the E2 earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device. The E2 earbud LED lights are flashing white and orange while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio E2 in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Connected.

If E2 has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and E2 has not been paired with a different device more recently.

Device compatibility

E2 uses Bluetooth version 5.2 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your E2 and connected device outdoors to see if the interference clears.

E2 can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

E2 can remember up to 10 devices and will pair automatically with the last used device. In most cases, you can switch between devices by selecting Sudio E2 in the Bluetooth list which pairs it with that device instead. However, some devices require E2 to be disconnected from the previous device entirely before they can be paired. It’s not possible to keep E2 connected to several devices at the same time, such as a laptop and smartphone simultaneously.

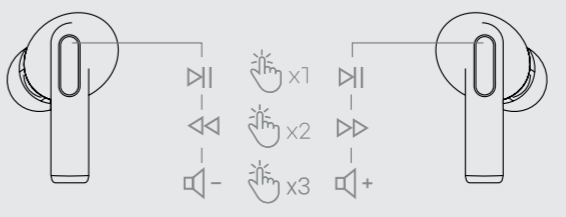

E2 - User guide - Touch controls

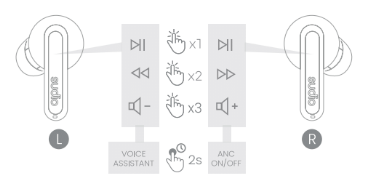

E2 has a touch control button on each earbud that allows you to control certain features on your paired device.

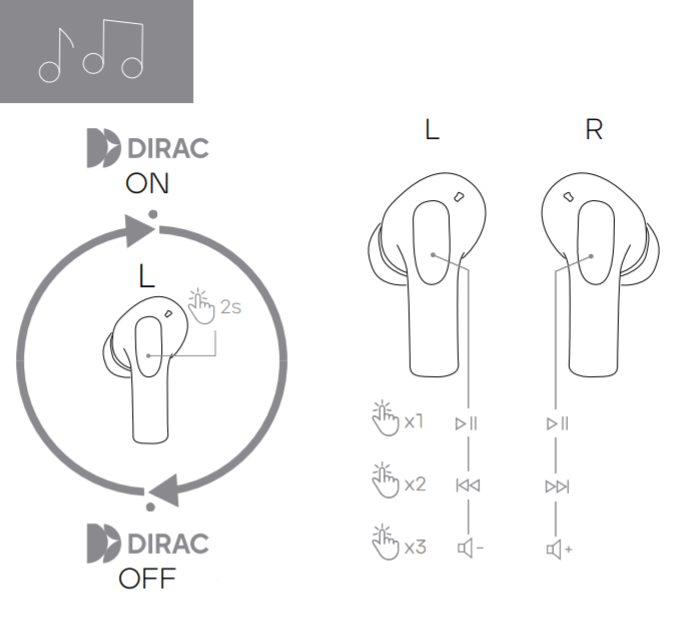

Music/video playback


  • Touch once on either earbud (left or right) to play or pause
  • Touch twice on the left earbud to rewind
  • Touch twice on the right earbud to go forward
  • Touch three times on the left earbud to decrease volume
  • Touch three times on the right earbud to increase volume
  • Touch (hold) for two seconds on the left earbud to turn Dirac spatial audio on/off. After 2 seconds the listening mode will change, followed by 🔈 Spatial On.

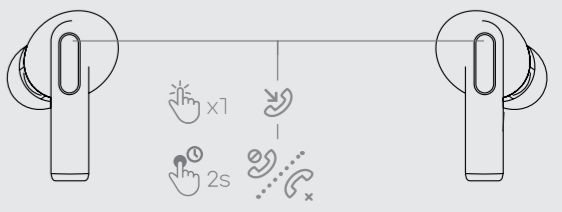

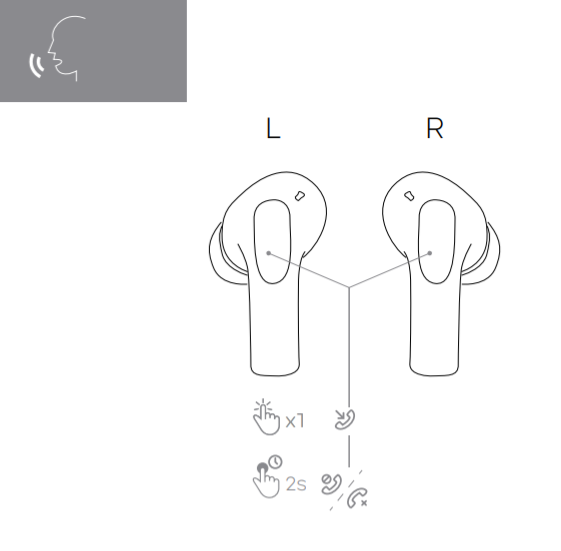

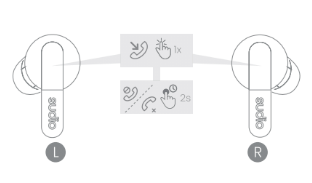

Incoming phone calls


  • Touch once on either earbud (left or right) to accept a phone call
  • Touch (hold) for two seconds on either earbud (left or right) to reject or end a phone call*

*It's not possible to end a call using the touch controls while using third-party conference software due to different software protocols.

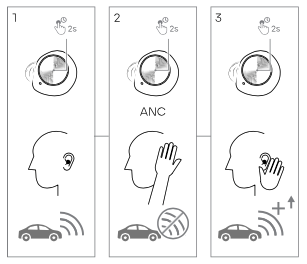

Active Noise Cancellation and Transparency Mode


Power

E2 powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Touch (hold) for five seconds on either earbud (left or right) to power on (single earbud).
  • Touch (hold) for five seconds on either earbud to power off (both earbuds). After 2 seconds the listening mode will change, followed by 🔈 Off.

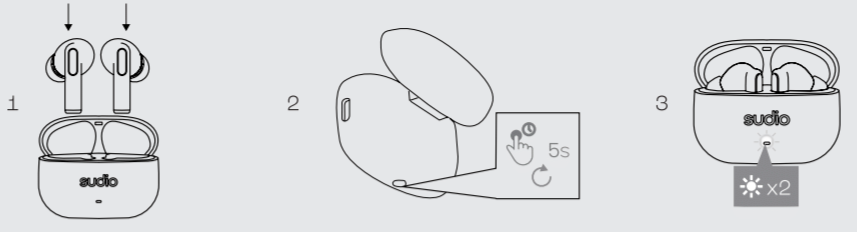

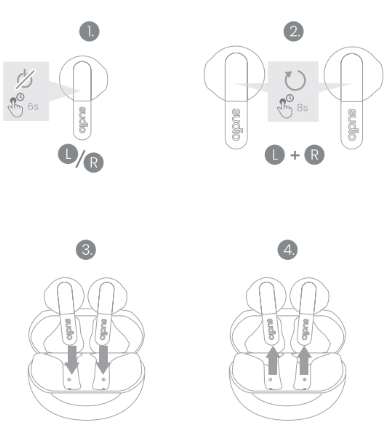

E2 - User guide - Factory reset


If E2 starts behaving unexpectedly, or if you wish to remove the connection between E2 and the connected device, you can perform a factory reset to restore your Sudio E2 to its original settings. This will reset the connection between your paired devices, as well as the connection between the two earbuds.

  1. Place the earbuds back into the charging case and keep the lid open.
  2. Press and hold the reset button on the back of the case for 5 seconds.
  3. The factory reset is complete when the LED light on the front of the case flashes white twice.
  4. Close the lid and allow 1-2 minutes before using the earphones again.

When you hear 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device, proceed to pair them with your Bluetooth device.

E2 - User guide - Battery levels and management

E2 has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included Type-C USB-cable is used to charge the case.

Before using your E2 for the first time

⚠️  Sudio E2 is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

Charging and play times

The earbuds can be used for approximately 6.5 hours on one charge (5.5 hours while using Dirac spatial audio - 4.4 hours while using ANC - 4 hours while using Dirac spatial audio and ANC), with up to 29 hours in total before the case needs to be recharged.

Each battery takes approximately 60 minutes to fully charge. E2 also supports quick charge, restoring 2 hours of playtime after 10 minutes of charging.

Charging methods

The E2 case can be charged with a Type-C USB-cable, wireless charging is also supported. We recommend using the Sudio cable included in the package, however, other third-party Type-C USB-cables may be compatible too.

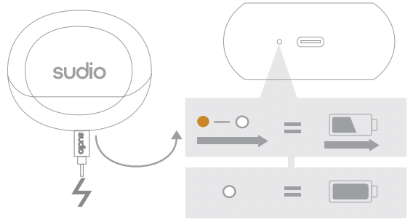

Battery level indicators

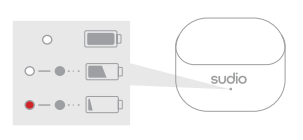

There are three LED-lights that indicate the respective batteries' remaining level. The charging case’s indicating light is on the front of the case. The earbuds' indicating lights are above the touch control buttons.

The LED's light up when the earbuds connect and disconnect to the case and when there is less than 25% battery remaining.

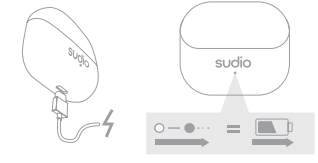

When inserting the charging cable to the case, the current battery level is displayed for 5 seconds followed by a blinking light, indicating that the case is currently charging.

In some cases, you can also read the battery level on your phone, such as iPhone or Android devices. The level shown is that of the E2 earbuds, not the charging case.

Earbuds


  • White: 26-100% battery remaining
  • Orange: 0-25% battery remaining

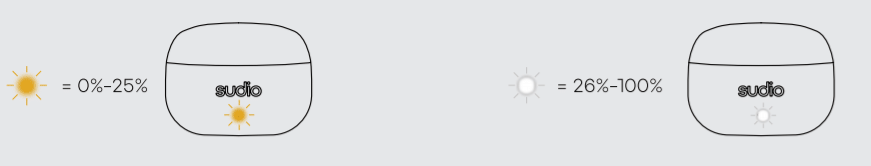

Charging case (no cable inserted)


  • White: 26-100% battery remaining
  • Orange: 0-25% battery remaining

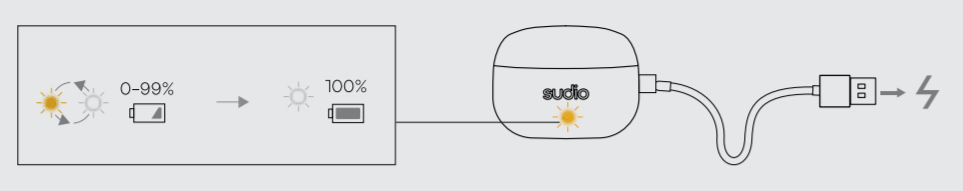

Charging case (with cable inserted and charging)


  • White (fixed): 100% battery charged
  • Orange/White blinking: 0-99% battery charged

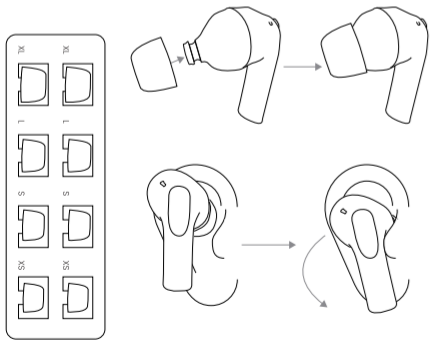

E2 - User guide - Getting the perfect fit

Sudio E2 has gone through extensive research and testing to result in an ergonomic design that provides all-day comfort and is ideal for long listening sessions.

To fit the earbud inside your ear, place it with the touch button facing outwards and slightly twist it in place.

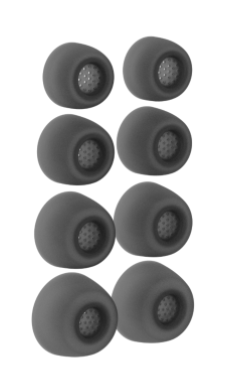

E2 is delivered with five interchangeable silicone ear tips in sizes XS, S, M, L and XL. The size M ear tips come pre-fitted on the earbuds. If needed, change these to find the size that best fits your ears without compromising comfort.




T2

T2 - User Guide - First-time setup


Congratulations on receiving your new pair of T2! Use this guide to learn about pairing T2 with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

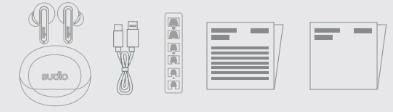

What's included in the box


  • T2 wireless earphones and charging case
  • Interchangeable ear tips in four different sizes: XS, S, M & L
  • Type-C USB-cable
  • Microfiber cloth
  • Owners manual

Before getting started

⚠️  Sudio T2 is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge T2 before using it for the first time.

Turning T2 on or off


T2 powers up as soon as the lid on the charging case is opened, as indicated by the LED lights on the earbuds and the audio feedback 🔈 On.

Similarly, T2 is turned off when placing the earbuds back into the case.

You can also use the touch controls to power the earbuds on or off. Do this by holding the touch control for 5 seconds on either earbud.

Pairing with a device

Jump to complete guide

T2 enters pairing mode when opening the lid on the charging case. Open the Bluetooth settings on your device and wait for T2 and the device to locate each other, then select Sudio T2  when it appears in the list. You will hear 🔈 Connected, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on T2; one in the charging case and one in each earbud.

The T2 earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The T2 case is charged with a Type-C USB-cable. When the case is charging, you will see a light below the charging port (where the cable is inserted). It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring T2 to factory settings

Jump to complete guide


If T2 is behaving unexpectedly or you simply wish to restore it to its original settings, reset it by placing the earbuds inside the case and, with the lid open, press the button on the bottom side of the case for 5 seconds. The reset is complete when the LED light on the case flashes white twice.

You may then proceed with pairing T2 again.

T2 - User guide - Connectivity & Pairing

Sudio T2 enters pairing mode immediately when opening the lid on the charging case. When pairing T2 for the first time, you hear 🔈 On followed by 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device.

⚠️  Sudio T2 is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

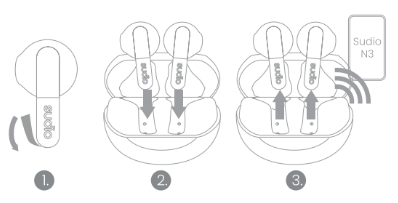

Pairing T2 with a device

  1. Remove the T2 earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device. The T2 earbud LED lights are flashing white and orange while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio T2 in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Connected.

If T2 has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and T2 has not been paired with a different device more recently.

Device compatibility

T2 uses Bluetooth version 5.2 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

What is Sudio T2 BLE?

Sudio T2 BLE may appear in the Bluetooth list alongside Sudio T2 on some devices (such as Android and Windows). While selecting it is completely harmless, the correct one to pair with should always be Sudio T2. Selecting Sudio T2 BLE may result in your earphones or device not performing as expected.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your T2 and connected device outdoors to see if the interference clears.

T2 can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

T2 can remember up to 10 devices and will pair automatically with the last used device. In most cases, you can switch between devices by selecting Sudio T2 in the Bluetooth list which pairs it with that device instead. However, some devices require T2 to be disconnected from the previous device entirely before they can be paired. It’s not possible to keep T2 connected to several devices at the same time, such as a laptop and smartphone simultaneously.

T2 - User guide - Touch controls

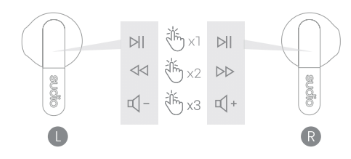

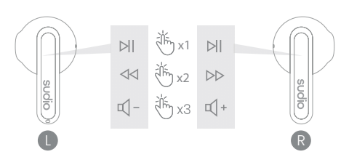

T2 has a touch control button on each earbud that allows you to control certain features on your paired device.

Music/video playback


  • Touch once on either earbud (left or right) to play or pause
  • Touch twice on the left earbud to rewind
  • Touch twice on the right earbud to go forward
  • Touch three times on the left earbud to decrease volume
  • Touch three times on the right earbud to increase volume

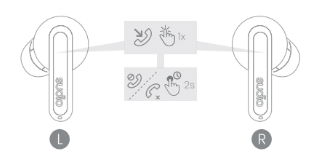

Incoming phone calls


  • Touch once on either earbud (left or right) to accept a phone call
  • Touch (hold) for three seconds on either earbud (left or right) to reject or end a phone call*

*It's not possible to end a call using the touch controls while using third-party conference software due to different software protocols.

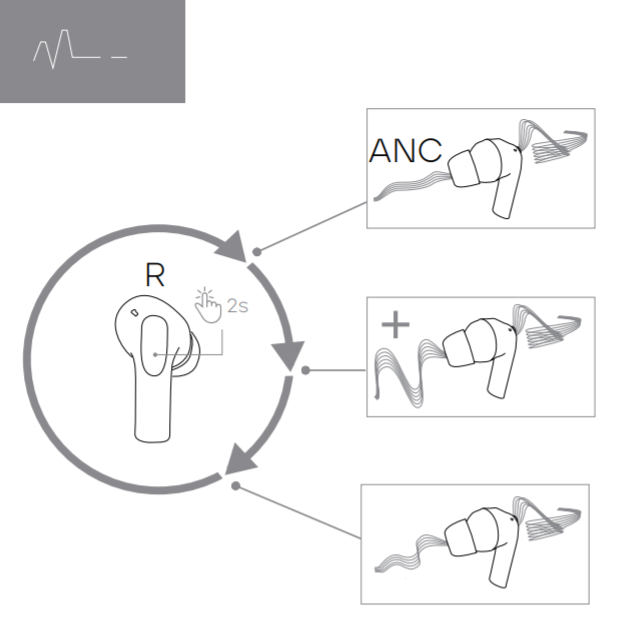

Active Noise Cancellation and Transparency Mode


Power

T2 powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Touch (hold) for five seconds on either earbud (left or right) to power on (single earbud)
  • Touch (hold) for five seconds on either earbud to power off (both earbuds). After 2 seconds the listening mode will change, followed by 🔈 Off.

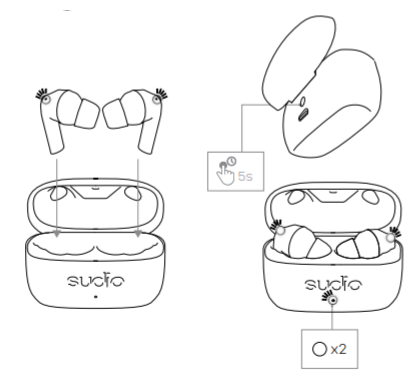

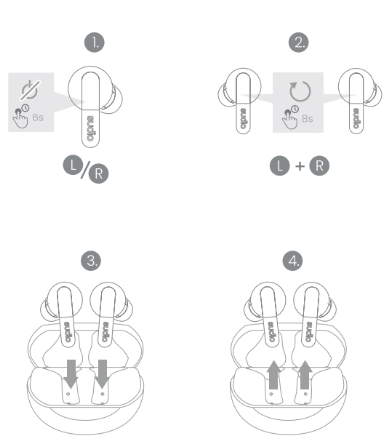

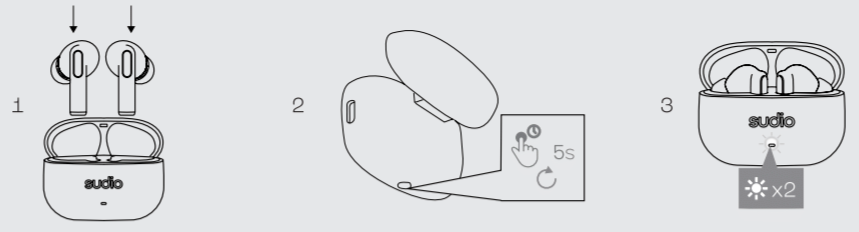

T2 - User guide - Factory reset


If T2 starts behaving unexpectedly, or if you wish to remove the connection between T2 and the connected device, you can perform a factory reset to restore your Sudio T2 to its original settings. This will reset the connection between your paired devices, as well as the connection between the two earbuds.

  1. Place the earbuds back into the charging case and keep the lid open.
  2. Press and hold the reset button on the bottom side of the case for 5 seconds.
  3. The factory reset is complete when the LED light on the back of the case flashes white twice.
  4. Close the lid and allow 1-2 minutes before using the earphones again.

When you hear 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device, proceed to pair them with your Bluetooth device.

T2 - User guide - Battery levels and management

T2 has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included Type-C USB-cable is used to charge the case.

Before using your T2 for the first time

⚠️  Sudio T2 is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

Charging and play times

The earbuds can be used for approximately 7.5 hours on one charge (6.5 hours while using Active Noise Cancellation), with up to 35 hours in total before the case needs to be recharged.

Each battery takes approximately 60 minutes to fully charge. T2 also supports quick charge, restoring 2 hours of playtime after 10 minutes of charging.

Charging methods

The T2 case can only be charged with a Type-C USB-cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party Type-C USB-cables may be compatible too.

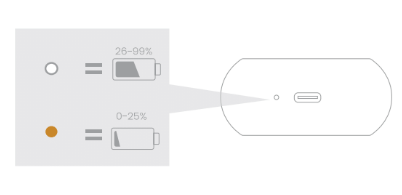

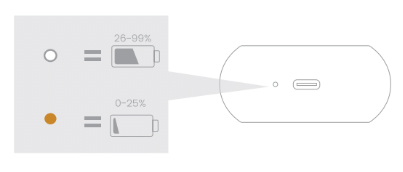

Battery level indicators

There are three LED-lights that indicate the respective batteries' remaining level. The charging case’s indicating light is on the back of the case, below the charging port. The earbuds' indicating lights are below the touch control buttons.

The LED's light up when the earbuds connect and disconnect to the case and when there is less than 25% battery remaining.

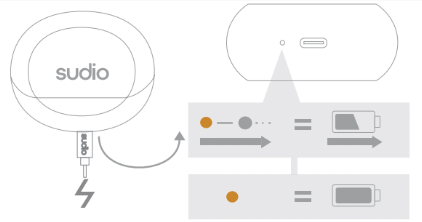

When inserting the charging cable to the case, the current battery level is displayed for 5 seconds followed by a blinking light, indicating that the case is currently charging.

In some cases, you can also read the battery level on your phone, such as iPhone or Android devices. The level shown is that of the T2 earbuds, not the charging case.

Earbuds


  • White: 26-100% battery remaining
  • Orange: 0-25% battery remaining

Charging case (no cable inserted)


  • White: 26-100% battery remaining
  • Orange: 0-25% battery remaining

Charging case (with cable inserted and charging)


  • White (fixed): 100% battery charged
  • White (blinking): 26-99% battery charged
  • Orange: 0-25% battery charged

T2 - User guide - Getting the perfect fit

Sudio T2 has gone through extensive research and testing to result in an ergonomic design that provides all-day comfort and is ideal for long listening sessions.

To fit the earbud inside your ear, place it with the touch button facing outwards and slightly twist it in place.

T2 is delivered with four interchangeable silicone ear tips in sizes XS, S, M, and L. The size M ear tips come pre-fitted on the earbuds. If needed, change these to find the size that best fits your ears without compromising comfort.


A2

A2 - User Guide - First-time setup

Congratulations on receiving your new pair of A2! Use this guide to learn about pairing A2 with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • A2 wireless earphones and charging case
  • Interchangeable ear tips in five different sizes: XS, S, M, L & XL
  • Type-C USB-cable
  • Microfiber cloth
  • Owners manual

Before getting started

⚠️  Sudio A2 is delivered with a red protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge A2 before using it for the first time.


Turning A2 on or off


A2 powers up as soon as the earbuds are removed from the charging case.

Similarly, A2 is turned off when placing the earbuds back into the case.

You can also use the touch controls to power the earbuds off. Do this by holding the touch control for 6 seconds on either earbud.

Pairing with a device

Jump to complete guide

A2 enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for A2 and the device to locate each other, then select Sudio A2  when it appears in the list. You will hear 🔈 Connected, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on A2; one in the charging case and one in each earbud.

The A2 earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the charging case. Make sure to first remove the protective film which is covering the charging connectors.

The A2 case is charged with a Type-C USB-cable and can also be charged wirelessly. When the case is charging, you will see several lights on the front of the charging case. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring A2 to factory settings

Jump to complete guide


If A2 is behaving unexpectedly or you simply wish to restore it to its original settings, reset it by taking the earbuds out of the case and touching (holding) the touch points on both earbuds for 8 seconds, the earbuds need 6 seconds to turn off and 8 seconds to reset.

You may then proceed with pairing A2 again.

A2 - User guide - Connectivity & Pairing

Sudio A2 enters pairing mode immediately when the earbuds are removed form the charging case. When pairing A2 for the first time, you hear 🔈 On followed by 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device.

⚠️  Sudio A2 is delivered with a red protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

Pairing A2 with a device

  1. Remove the A2 earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio A2 in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Connected.

If A2 has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and A2 has not been paired with a different device more recently.

Device compatibility

A2 uses Bluetooth version 5.2 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your A2 and connected device outdoors to see if the interference clears.

A2 can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

A2 can remember up to 10 devices and will pair automatically with the last used device. In most cases, you can switch between devices by selecting Sudio A2 in the Bluetooth list which pairs it with that device instead. However, some devices require A2 to be disconnected from the previous device entirely before they can be paired. It’s not possible to keep A2 connected to several devices at the same time, such as a laptop and smartphone simultaneously.

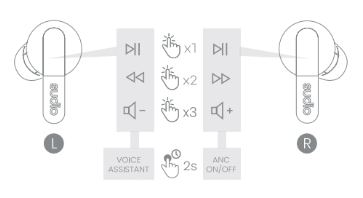

A2 - User guide - Touch controls

A2 has a touch control button on each earbud that allows you to control certain features on your paired device.

Music/video playback


  • Touch once on either earbud (left or right) to play or pause
  • Touch twice on the left earbud to rewind
  • Touch twice on the right earbud to go forward
  • Touch three times on the left earbud to decrease volume
  • Touch three times on the right earbud to increase volume

Incoming phone calls


  • Touch once on either earbud (left or right) to accept a phone call
  • Touch (hold) for two seconds on either earbud (left or right) to reject or end a phone call*

*It's not possible to end a call using the touch controls while using third-party conference software due to different software protocols.

Active Noise Cancellation


Power

A2 powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Touch (hold) for six seconds on either earbud to power off (both earbuds). After 2 seconds the listening mode will change, followed by 🔈 Off.

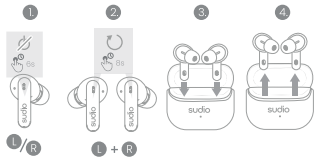

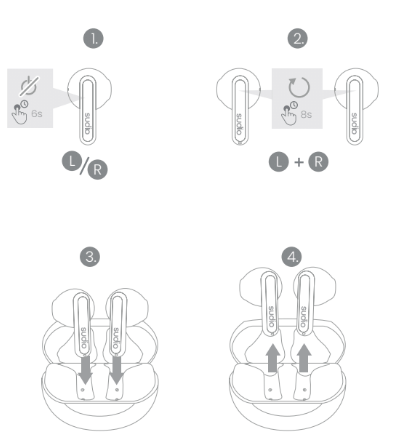

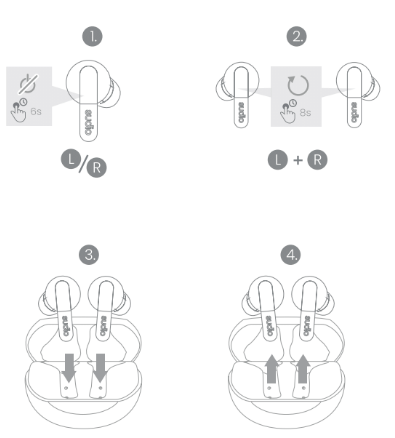

A2 - User guide - Factory reset

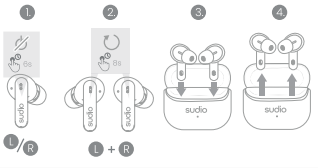

If A2 starts behaving unexpectedly, or if you wish to remove the connection between A2 and the connected device, you can perform a factory reset to restore your Sudio A2 to its original settings. This will reset the connection between your paired devices, as well as the connection between the two earbuds.

  1. Take the earbuds out of the charging case.
  2. Press and hold both touch points of the earbuds for 8 seconds.
  3. Place the earbuds back in the case and close the lid and allow 3 minutes before using the earphones again.

When you hear 🔈 Ready to pair, find your Sudio product in the Bluetooth list of your device, proceed to pair them with your Bluetooth device.

A2 - User guide - Battery levels and management

A2 has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included Type-C USB-cable is used to charge the case.

Before using your A2 for the first time

⚠️  Sudio A2 is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to power on.

Charging and play times

The earbuds can be used for approximately 9.5 hours on one charge (6.5 hours while using ANC), with up to 30 hours in total before the case needs to be recharged.

The earbuds take approximately 1.5 hours to fully charge and the charging case 2 hours.

Charging methods

The A2 case can be charged with a Type-C USB-cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party Type-C USB-cables may be compatible too.

Battery level indicators

There are four LED-lights that indicate the charging cases' and the earbuds' remaining level. The indicating lights are on the front of the case.

The LED's light up when the earbuds connect and disconnect to the case.

When inserting the charging cable to the case, the blinking light on the case indicates that the case is currently charging.

In some cases, you can also read the battery level on your phone, such as iPhone or Android devices. The level shown is that of the A2 earbuds, not the charging case.

Charging case and earbuds (no cable inserted)


  • One light: 0-25% battery remaining
  • Two lights: 26-50% battery remaining
  • Three lights: 51-75% battery remaining
  • Four lights: 79-100% battery remaining

Charging case (with cable inserted and charging)


  • First light blinking: 0-25% battery charged
  • Second light blinking: 26-50% battery charged
  • Third light blinking: 51-75% battery charged
  • Fourth light blinking: 76-99% battery charged
  • Four lights shining: 100% battery charged

A2 - User guide - Care and cleaning

Cleaning your earphones on a regular basis will ensure the best possible sound performance and prevent them from wearing out sooner than expected.

Sudio A2 features silicone ear tips with a built-in mesh net, protecting the earbuds from dirt, grime (and the notorious earwax), all while sitting comfortably in your ears. These ear tips can be removed from the earbuds and cleaned with water or a cotton swab. Avoid hot water though, as this can distort the size and shape of the ear tips.


Use only a slightly damp cloth when cleaning the earbuds and/or case. You can also use a fine brush or cotton swab to gently clean inside the case, avoiding damage to the charging connectors (copper pins). While the A2 earbuds and case are splash-proof, subjecting them to high moisture levels could lead to permanent water damage.

Psst, the Sudio Care Kit is ideal for regular maintenance and includes all the tools you need to keep your Sudio earphones in shape!

Keep in mind that with time, some discoloration may eventually appear. This is most common if the earbuds or charging case continue to come in contact with dirty surfaces or materials over extended periods of time.

Nio

Nio - User Guide - First-time setup


Congratulations on receiving your new pair of Nio! Use this guide to learn about pairing Nio with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • Nio wireless earphones and charging case
  • Interchangeable ear tips in four different sizes: XS, S, M & L
  • Type-C USB-cable
  • Owners manual

Before getting started

⚠️  Sudio Nio is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge Nio before using it for the first time.

Turning Nio on or off

Nio powers up as soon as the earbuds are removed from the charging case, as indicated by the LED lights on the earbuds and the audio feedback 🔈 Power On.

Similarly, Nio is turned off when placing the earbuds back into the case.

You can also use the touch controls to power the earbuds on or off. Do this by holding the touch control for 7 seconds on either earbud.

Pairing with a device


Jump to complete guide

Nio enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for Nio and the device to locate each other, then select Sudio Nio when it appears in the list. You will hear 🔈 Pairing Successful, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on Nio; one in the charging case and one in each earbud.

The Nio earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The Nio case is charged with a Type-C USB-cable. When the case is charging, you will see a light below the Sudio logo. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring Nio to factory settings

Jump to complete guide


If Nio is behaving unexpectedly or you simply wish to restore it to its original settings, reset it by placing the earbuds inside the case, closing the lid, and pressing the button on the bottom side of the case for 3 seconds.

You may then proceed with pairing Nio again.

Nio - User guide - Connectivity & Pairing



 Pairing Nio with a device


  1. Remove the Nio earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device. The Nio earbud LED lights are flashing white and red while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Nio in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Pairing Successful.

If you would like to use only one of the earbuds, you can do so by just taking out the one you want to use from the charging case.

If Nio has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and Nio has not been paired with a different device more recently.

Sudio Nio will automatically turn on when you lift out the earbuds of the charging case, and it will turn off when you put them back in the case. You can also turn them off by pressing the touch button for 6 seconds until you hear "power off”.
In order to turn them on, put them back in the charging case and simply take them out of the charging case.

Device compatibility

Nio uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Nio and connected device outdoors to see if the interference clears.

Nio can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

Nio can remember up to 8 paired devices, which means that you don't have to follow the pairing step every time you switch between devices. When Nio is turned on, it will automatically connect to the device most recently connected.

If you want to reconnect to one of your previously paired devices, please disconnect Sudio Nio first from the device you are currently using, and click "Sudio Nio" in the list of the next device you want to connect.

Sudio Nio supports multi-pairing, but you can only play audio from one device at a time. (Multi-point connection is not supported.)

Nio - User guide - Touch controls

Nio has a touch control button on each earbud that allows you to control certain features on your paired device.

Music/video playback


  • Touch once on either earbud (left or right) to play or pause
  • Touch twice on the right earbud to go forward
  • Touch twice on the left earbud to rewind
  • Touch three times on the right earbud to turn up the volume
  • Touch three times on the left earbud to turn down the volume

Incoming phone calls


  • Touch once on either earbud (left or right) to accept a phone call
  • Touch (hold) for two seconds on either earbud (left or right) to reject a phone call
  • Touch (hold) for three seconds on either earbud (left or right) to end a phone call

Power

Nio powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Press (hold) for six seconds on either earbud to power off both earbuds (🔈 Power Off).
  • Press (hold) for three seconds on either earbud to power on the single earbud(🔈 Power On).

Nio - User guide - Factory reset

If your Sudio Nio is behaving unexpectedly or you are having difficulty pairing, please follow the factory reset steps below.

    1. Turn off the wireless connection on your device.
    2. Put both earbuds in the charging case and close the case.
    3. Forget “Sudio Nio” in the wireless connection list on your device. Sudio Nio should no longer be synced to your device. If you have connected Sudio Nio to multiple devices, forget them from all other devices as well.
    4. Press and hold the button on the bottom of the charging case for 3 seconds.
    5. Turn on the wireless connection on your device and select “Sudio Nio” in the list to pair it with your device.

Nio - User guide - Battery levels and management

Nio has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included USB Type-C cable is used to charge the case.

⚠️  Sudio Nio is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

Charging and play times

The earbuds can be used for approximately 5.5 hours on one charge, with up to 20 hours in total before the case needs to be recharged.

Each battery takes approximately 90 minutes to fully charge. Also 15 minutes of charging gives 1 hour of playtime.

It takes 150 minutes to charge the earbuds and the charging case from 0% battery. When both the earbuds and the charging case have no battery left, charge the charging case without the earbuds for 15 mins first. Then, put the earbuds back into the charging case to start charging them. This is to prevent Sudio Nio from rebooting in a loop while charging, at which point they will no longer function correctly.

Charging methods

The Nio case can be charged with a USB Type-C cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party USB Type-C cables may be compatible too.

Battery level indicators

There are three LED-lights that indicate the respective batteries' remaining level. The charging case’s indicating light is on the front of the case, below the Sudio logo. The earbuds' indicating lights are below the touch control buttons. The color of LED lights changes depending on how much battery is left.

0% - 25% battery level: Yellow light is on
26% - 100% battery level : White light is on


Earbuds:
The LED lights on the earbuds indicate the remaining battery level of the earbuds. The LED lights up when you take them out of the charging case.

When you want to charge your earbuds, simply put them back into the charging case and make sure to check that the LED lights of both earbuds and the charging case start blinking.
You can also check the battery level more specifically on your device.
For iOS devices, you are able to see the battery status on the home screen widget. If you do not have the widget, you can edit home screen settings to add it.
For Android devices, you are able to see the battery icon on the screen, there is also a variety of third-party Android app for reading battery levels on connected devices.

Charging case:
The LED light on the charging case indicates the remaining battery level of the charging case. The LED light will blink when you put the earbuds back into the charging case.

Nio - User Guide - Getting the perfect fit

Nio is delivered with four interchangeable silicone ear tips in four different sizes. If needed, change the pre-fitted ear tips to find the size that best fits your ears without compromising comfort.

These interchangeable wingtips make for a customizable fit that makes wearing Sudio Nio feel ascendant.


If you feel that Sudio Nio doesn't fit your ears, please try all the different sizes included in the packaging to find the one which fits your ears the best.


Ett

Ett - User Guide - First-time setup


Congratulations on receiving your new pair of Ett! Use this guide to learn about pairing Ett with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • Ett wireless earphones and charging case
  • Interchangeable ear tips: Parabolic ear tips in 5 different sizes: XXS, XS, S, M, L - Conical ear tips in 4 different sizes: XS, S, M, L
  • Type-C USB-cable
  • Owners manual

Before getting started

⚠️  Sudio Ett is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge Ett before using it for the first time.

Turning Ett on or off

Ett powers up as soon as the earbuds are removed from the charging case, as indicated by the LED lights on the earbuds and the audio feedback 🔈 Pairing.

Similarly, Ett is turned off when placing the earbuds back into the case.

You can also use the button controls to power the earbuds off. Do this by holding the button for 7 seconds on either earbud.

Pairing with a device


Jump to complete guide

Ett enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for Ett and the device to locate each other, then select Sudio Ett when it appears in the list. You will hear 🔈 Pairing Successful, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on Ett; one in the charging case and one in each earbud.

The Ett earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the front of the charging case, the left and right LED lights will be white and blinking. Make sure to first remove the protective film which is covering the charging connectors.

The Ett case is charged with a Type-C USB-cable. When the case is charging, you will see lights in the front of the charging case. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring Ett to factory settings

Jump to complete guide

If Ett is behaving unexpectedly or you simply wish to restore it to its original settings, then you can reset it. You may then proceed with pairing Ett again.

Ett - User guide - Connectivity & Pairing

Pairing Ett with a device


  1. Remove the Ett earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device. The Ett earbud LED lights are flashing white and red while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Ett in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Pairing Successful.

If you would like to use only one of the earbuds, you can do so by just taking out the one you want to use from the charging case.

If Ett has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and Ett has not been paired with a different device more recently.

Device compatibility

Ett uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Ett and connected device outdoors to see if the interference clears.

Ett can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

Ett can remember up to 8 paired devices, which means that you don't have to follow the pairing step every time you switch between devices. When Ett is turned on, it will automatically connect to the device most recently connected.


If you want to reconnect to one of your previously paired devices, please disconnect Ett first from the device you are currently using, and click "Sudio Ett" in the wireless connection list of the next device you want to connect. Ett supports multi-pairing, but you can only play audio from one device at a time.

Ett - User guide - Button controls

Ett has a control button on each earbud that allows you to control certain features on your paired device.


Music/video playback

  • Press once on either earbud (left or right) to play or pause
  • Press twice on either earbud to go forward
  • Press three times on either earbud to rewind

Active Noise Cancellation

  • Press (hold) for two seconds on either earbud to activate Active Noise Cancellation (🔈 Noise Cancelling On)
  • Press (hold) for two seconds on either earbud to turn off Active Noise Cancellation (🔈 Noise Cancelling Off).

Please note that later releases of Sudio Ett does not have a voice prompt when ANC is turned on/off.

Incoming phone calls

  • Press once on either earbud (left or right) to accept  or end a phone call
  • Press (hold) for two seconds on either earbud (left or right) to reject a phone call

Power

Ett powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can turn the earbuds off without using the charging case.

  • Press (hold) for six seconds on either earbud to power off both earbuds(🔈 Power Off)
  • In order to turn them on, put the earbuds back in the charging case and then take them out.



Ett - User guide - Factory reset

If your Ett is behaving unexpectedly or you are having difficulty pairing, follow the steps below (or jump straight to the factory reset in this Quick Start video) to perform a factory reset. This will reset the connection with your paired devices as well as the connection between the two earbuds.

  1. Turn off Bluetooth on your device.
  2. "Forget" the earphones in your Bluetooth settings on all devices that your Ett has been previously paired with.
  3. Put both the earbuds back into the case.
  4. Lift the left earbud out of the case and press the button 8 times.
  5. When the LED light starts flashing red and white quickly, place the left earbud back in the case.
  6. Lift the right earbud out of the case and press the button 8 times.
  7. When the LED light starts flashing red and white quickly on the right earbud too, lift the left earbud out of the case.
  8. Press both buttons on both earbuds two times (at the same time).
  9. The reset is now complete, allow the earbuds to remain inside the case for about 2-3 minutes before pairing them with a device again.

Ett - User guide - Battery levels and management

Ett has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included USB Type-C cable is used to charge the case.

⚠️  Sudio Ett is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

Charging and play times

The earbuds can be used for approximately 6 hours on one charge, with up to 30 hours in total before the case needs to be recharged.

While ANC is activated, the earbuds can be used for approximately 4 hours on one charge, with up to 20 hours in total before the case needs to be recharged.

Each battery takes approximately 60 minutes to fully charge. Sudio Ett also supports quick charging, 15 minutes of charging gives 1 hour of playtime.

Charging methods

The Ett case can be charged with a USB Type-C cable but wireless charging is also supported. We recommend using the Sudio cable included in the package, however, other third-party USB Type-C cables may be compatible too.

Our product Sudio Ladd+ is compatible with Ett for wireless charging.

Battery level indicators


There are four LED lights on the front of the charging case.

The LED lights on the charging case indicate the remaining battery level of the charging case. The LED lights will be on when you take out the earbuds or put them back into the charging case.

  • 75% - 100%: All four lights are on
  • 50% - 75% battery level: Three white lights are on
  • 25% - 50% battery level: Two lights are on
  • 0% - 25% battery level: One light is on

Charging the earphones in the charging case

Put the earbuds inside the case in order to charge their individual batteries.

  • When the left earbud is placed inside the case, the left-most LED light on the case will light up for a few seconds, indicating that the left earbud is connected to the case and charging successfully.
  • When the right earbud is placed inside the case, the right-most LED light on the case will light up for a few seconds, indicating that the right earbud is connected to the case and charging successfully.
  • If any or both of the earbuds are fully charged when they are placed inside the case, the LED lights on the case remain turned off.

You can also check the remaining battery of the Ett earbuds on your mobile device.
For iOS devices, you are able to see the battery status on the home screen widget. If you do not have the widget, you can edit home screen settings to add it.
For Android devices, you are able to see the battery icon on the screen, there is also a variety of third-party Android app for reading battery levels on connected devices.

If Sudio Ett is not charging properly

In some cases, the charging pins inside the case scratch the receiving pole on the earphone, leaving residue that could potentially break the connection. Gently wipe the charging pin and receiving pole with a dry cloth or a swab and try charging the earphones again. The Sudio Care Kit is ideal for this, as it comes with all tools necessary to keep your Ett in tip-top condition!

If the earphones lose battery faster than usual, follow the instructions below:

  1. Take out both earphones from the charging case and charge the case with the included cable separately until full.
  2. Make sure the cable is fully inserted into the case and that there is no dust or dirt blocking the port. Note that inserting the cable forcefully can cause permanent damage to the cable and/or case.
  3. Use the charging cable included in the product packaging and check that the cable is working correctly.
  4. Try to get power from a different source i.e. laptop charging port or from a wall outlet.
  5. If you have other Type C USB-cables, consider trying these and see if there is any difference.



Ett - User guide - Care and cleaning

Cleaning your earphones on a regular basis will ensure the best possible sound performance and prevent them from wearing out sooner than expected.

Use only a slightly damp cloth when cleaning the earbuds and/or case. You can also use a fine brush or cotton swab to gently clean the earbuds and inside the case, avoiding damage to the charging connectors (copper pins). Avoid using alcohol or chemicals, as this can damage the rubber coating on the earbuds and case. In some cases, being exposed to strong sunshine or high heat might alter the form of the silicon material.

Psst, the Sudio Care Kit is ideal for regular maintenance and includes all the tools you need to keep your Sudio earphones in shape!

Light-colored earphones always need to be treated with a bit of extra care.

Keep in mind that with time, some discoloration may eventually appear. This is most common if the earbuds or charging case continue to come in contact with dirty surfaces or materials over extended periods of time.

Fem

Fem - User Guide - First-time setup


Congratulations on receiving your new pair of Fem! Use this guide to learn about pairing Fem with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • Fem wireless earphones and charging case
  • Interchangeable ear tips in 4 different sizes: XS, S, M, L
  • Type-C USB-cable
  • Owners manual

Before getting started

⚠️  Sudio Fem is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge Fem before using it for the first time.

Turning Fem on or off

Fem powers up as soon as the earbuds are removed from the charging case, as indicated by the LED lights on the earbuds.

Similarly, Fem is turned off when placing the earbuds back into the case.

You can also use the touch controls to power the earbuds on/off. Do this by holding the button for 6 seconds on either earbud.

Pairing with a device

Jump to complete guide

Fem enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for Fem and the device to locate each other, then select Sudio Fem when it appears in the list. You will hear 🔈 Pairing Successful, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on Fem; one in the charging case and one in each earbud.

The Fem earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The Fem case is charged with a Type-C USB-cable. When the case is charging, you will see lights in the inside of the charging case. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

Restoring Fem to factory settings

Jump to complete guide

If Fem is behaving unexpectedly or you simply wish to restore it to its original settings, then you can reset it. You may then proceed with pairing Fem again.

Fem - User guide - Connectivity & Pairing

Pairing Fem with a device

  1. Remove the Fem earbuds from the charging case and fit them inside your ears.
  2. Go into the Bluetooth settings on your device. The Fem earbud LED lights are flashing white and red while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Fem in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Pairing Successful.

If you would like to use only one of the earbuds, you can do so by just taking out the one you want to use from the charging case.

If Fem has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and Fem has not been paired with a different device more recently.

Device compatibility

Fem uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Fem and connected device outdoors to see if the interference clears.

Fem can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

Fem can remember up to 8 paired devices, which means that you don't have to follow the pairing steps every time you switch between devices. When Fem is turned on, it will automatically connect to the device most recently connected.


If you want to reconnect to one of your previously paired devices, disconnect Fem from the device you are currently using, and click "Sudio Fem" in the Bluetooth list of the next device you want to connect. Fem supports multi-pairing, but you can only play audio from one device at a time.

Fem - User guide - Touch controls

Fem has a touch control button on each earbud that allows you to control certain features on your paired device.


Music/video playback

  • Touch once on either earbud (left or right) to play or pause
  • Touch twice on right earbud to go forward
  • Touch twice on left earbud to rewind
  • Touch three times on right earbud to turn up the volume
  • Touch three times on left earbud to turn down the volume

Incoming phone calls

  • Touch once on either earbud (left or right) to accept or end a phone call
  • Touch (hold) for two seconds on either earbud (left or right) to reject a phone call

Power

Fem powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Touch (hold) for six seconds on either earbud to power off both earbuds (🔈 Power Off)
  • Touch (hold) for six seconds on either earbud to power on a single earbud. (🔈 Power On)

Siri or Google Assistant

  • Touch (hold) for 1 second to activate voice assistants such as Siri and Google Assistant



Fem - User guide - Factory reset

If the Fem earphones are behaving unexpectedly or no longer pairing, they may have fallen out of sync with each other or with the connected device. To overcome this, perform a factory reset that will restore the earphones back to their original settings.

How to do it:

  1. Put both earphones inside the charging case.
  2. Disconnect Sudio Fem from all previously connected devices, which is most often done by pressing the "Forget" button.
  3. Lift both earphones from the charging case.
  4. Turn off both earbuds manually by pressing the touch buttons until the red light shines on both.
  5. Press and hold the left earphone button until the LED flashes red and white repeatedly.
  6. Repeat the same step on the right earbud.
  7. Put both earphones back inside the charging case and wait for 10 seconds.
  8. Lift both earphones at the same time from the charging case. Both LED lights will blink separately. When one earbud flashes red and white and the other's light stays dark, they are synced together.

You can now pair Fem with your device again by going into the Bluetooth settings and selecting "Sudio Fem".

Fem - User guide - Battery levels and management

Fem has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included USB Type-C cable is used to charge the case.

⚠️  Sudio Fem is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

Charging and play times

The earbuds can be used for approximately 6 hours on one charge, with up to 20 hours in total before the case needs to be recharged.

Each battery takes approximately 60 minutes to fully charge. Also 15 minutes of charging gives 1 hour of playtime.

Charging methods

The Fem case can be charged with a USB Type-C cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party USB Type-C cables may be compatible too.

Battery level indicators

There are four LED lights inside of the charging case.

The LED lights in the charging case indicate the remaining battery level of the charging case. The LED lights will be on when you take out the earbuds or put them back into the charging case.

  • 100%: All four lights are on
  • 75%: Three white lights are on
  • 50%: Two lights are on
  • 25%: One light is on


Charging the earphones in the charging case:

  • If the LED lights on the earbuds shows white and is blinking, it means the earbuds are currently charging.

You can check the remaining battery of the Fem earbuds on your mobile device.
For iOS devices, you are able to see the battery icon on the top right side of the screen.
For Android devices, you are able to see the battery icon on the screen.

There's also a variety of third-party apps for battery management available in Google Play Store.

Fem - User guide - Getting the perfect fit

Fem is delivered with four interchangeable silicone ear tips in four different sizes. If needed, change the pre-fitted ear tips to find the size that best fits your ears without compromising comfort.


To fit the earbud inside your ear, place it with the touch button facing outwards and slightly twist it in place.


Tolv

Tolv - User Guide - First-time setup


Congratulations on receiving your new pair of Tolv! Use this guide to learn about pairing Tolv with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • Tolv wireless earphones and charging case
  • Interchangeable ear tips in 4 different sizes: XS, S, M, L
  • Micro-USB cable
  • Owners manual

Before getting started

⚠️  Sudio Tolv is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

The earbuds will likely have some existing battery charge, however it is recommended to fully charge Tolv before using it for the first time.

Turning Tolv on or off

Tolv powers up as soon as the earbuds are removed from the charging case, as indicated by the LED lights on the earbuds.

Similarly, Tolv is turned off when placing the earbuds back into the case.

You can also use the button controls to power the earbuds on/off. Do this by holding the button for 5 seconds on either earbud.

Pairing with a device


Jump to complete guide

Tolv enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for Tolv and the device to locate each other, then select Sudio Tolv when it appears in the list. You will hear 🔈 Device Connected, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on Tolv; one in the charging case and one in each earbud.

The Tolv earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The Tolv case is charged with a Micro-USB cable. When the case is charging, you will see the left light in the back of the charging case. It is recommended to use the Sudio Micro-USB cable that's included in the package, but the charging case may be compatible with third-party Micro-USB cables as well.

Restoring Tolv to factory settings

Jump to complete guide

If Tolv is behaving unexpectedly or you simply wish to restore it to its original settings, then you can reset it. You may then proceed with pairing Tolv again.

Tolv - User guide - Connectivity & Pairing

Pairing Tolv with a device


  1. Remove the Tolv earbuds from the charging case and fit them inside your ears. If you want to use both, make sure to lift the second earbud within 15 seconds of lifting the first one.
  2. Go into the Bluetooth settings on your device. The Tolv earbud LED lights are flashing white and red while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Tolv in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Device Connected.

If you would like to use only one of the earbuds, you can do so by just taking out the one you want to use from the charging case. Then proceed with connecting the earbud to either "Sudio Tolv" (Right) or "Sudio Tolv-L" (Left).

If Tolv has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and Tolv has not been paired with a different device more recently.

Device compatibility

Tolv uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Tolv and connected device outdoors to see if the interference clears.

Tolv can be up to a maximum of 15 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

Tolv can remember up to 8 paired devices, which means that you don't have to follow the pairing step every time you switch between devices. When Tolv is turned on, it will automatically connect to the device most recently connected.

If you want to reconnect to one of your previously paired devices, please disconnect Tolv first from the device you are currently using, and click "Sudio Tolv" in the wireless connection list of the next device you want to connect. Tolv supports multi-pairing, but you can only play audio from one device at a time.

Tolv - User guide - Button controls

Tolv has a control button on each earbud that allows you to control certain features on your paired device.

Some apps, however, may not be compatible with the button controls. In this case, you are only able to control playback and calls via the paired device.

Music/video playback


  • Press once on either earbud (left or right) to play or pause
  • Press twice on the left earbud to rewind
  • Press twice on the right earbud to go forward

Incoming phone calls


  • Press once on either earbud (left or right) to accept a phone call
  • Press (hold) for three seconds on either earbud (left or right) to reject or end a phone call

Power

Tolv powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Press (hold) for five seconds on either earbud (left or right) to power on (single earbud)
  • Press (hold) for five seconds on either earbud to power off (single earbud). After 5 seconds the listening mode will change, followed by 🔈 Power Off.

Tolv - User guide - Factory reset



If Tolv starts behaving unexpectedly, or if you wish to remove the connection between Tolv and the connected device, you can perform a factory reset to restore your Sudio Tolv to its original settings. This will reset the connection between your paired devices, as well as the connection between the two earbuds.

  1. Disconnect Sudio Tolv from all previously connected devices, most often by clicking on the "Forget" button.
  2. Turn off both earphones by pressing and holding both buttons for 6 seconds.
  3. Start the earphones again by pressing and holding both sides for 13 seconds, until the lights stop blinking.
  4. Put the earphones back in the case and wait for 3 minutes.
  5. The factory reset is complete.

Then you can start to pair them:

  1. Lift both earphones from the charging case at the same time (do not lift one by one, but both at the same time) and they will be in pairing mode.
  2. Select 'Sudio Tolv' in the Bluetooth list on your device.

After the factory reset, if you're seeing multiple Tolv devices in your Bluetooth list, such as "Sudio Tolv" and "Sudio Tolv-L", it could be caused by having pressed the buttons directly after taking them out of the charging case, or not taking both earbuds out at the same time.

Tolv pairs automatically when you take them out of the case, so avoid clicking on the buttons after you have performed the factory reset.

Tolv - User guide - Battery levels and management

Tolv has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included Micro-USB cable is used to charge the case.

⚠️  Sudio Tolv is delivered with a protective film covering the charging connectors between the earbuds and charging case. The film needs to be removed in order for the earbuds to charge.

Charging and play times

The earbuds can be used for approximately 7 hours on one charge, with up to 35 hours in total before the case needs to be recharged.

Each battery takes approximately 90 minutes to fully charge. Tolv also supports quick charging, 10 minutes of charging gives 1 hour of playtime.

Charging methods

The Tolv case can only be charged with a Micro-USB cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

There are two LED lights on the back of the charging case. The left LED light indicates the battery level of the case. The right LED light indicates the battery level of the earbuds.

Charging case (left LED light)

  • White (fixed): 70-100% battery remaining. The charging case can fully charge the earbuds 3 to 4 times.
  • White (blinking): 40-70% battery remaining. The charging case can fully charge the earbuds 1 to 2 times.
  • Red (fixed): 10-40% battery remaining. The charging case can fully charge the earbuds up to 1 time.
  • Red (blinking): 0-10% battery remaining. The charging case is running out of battery and needs to be charged with a cable.

Earbuds (right LED light)

  • The light is red while the earbuds are charging. It will turn off when the earbuds are fully charged.



Tolv - User guide - Care and cleaning

Cleaning your earphones on a regular basis will ensure the best possible sound performance and prevent them from wearing out sooner than expected.

Use only a slightly damp cloth when cleaning the earbuds and/or case. You can also use a fine brush or cotton swab to gently clean the earbuds and inside the case, avoiding damage to the charging connectors (copper pins). Avoid using alcohol or chemicals, as this can damage the rubber coating on the earbuds and case. In some cases, being exposed to strong sunshine or high heat might alter the form of the silicon material.

Psst, the Sudio Care Kit is ideal for regular maintenance and includes all the tools you need to keep your Sudio earphones in shape!

Light-colored earphones always need to be treated with a bit of extra care.

Keep in mind that with time, some discoloration may eventually appear. This is most common if the earbuds or charging case continue to come in contact with dirty surfaces or materials over extended periods of time.

Tolv R

Tolv R - User Guide - First-time setup


Congratulations on receiving your new pair of Tolv R! Use this guide to learn about pairing Tolv R with your preferred device, charging the batteries, and restoring the earphones to their factory settings.

What's included in the box


  • Tolv R wireless earphones and charging case
  • Interchangeable ear tips in 4 different sizes: XS, S, M, L
  • Micro-USB cable
  • Owners manual

Before getting started

The earbuds will likely have some existing battery charge, however it is recommended to fully charge Tolv R before using it for the first time.

Turning Tolv R on or off

Tolv R powers up as soon as the earbuds are removed from the charging case, as indicated by the LED lights on the earbuds.

Similarly, Tolv R is turned off when placing the earbuds back into the case.

You can also use the button controls to power the earbuds on/off. Do this by holding the button for 5 seconds on either earbud.

Pairing with a device


Jump to complete guide

Tolv R enters pairing mode when the earbuds are removed from the charging case. Open the Bluetooth settings on your device and wait for Tolv R and the device to locate each other, then select Sudio Tolv R when it appears in the list. You will hear 🔈 Device Connected, confirming that the devices are paired with each other!

Charging the batteries

Jump to complete guide

There are three batteries in total on Tolv R; one in the charging case and one in each earbud.

The Tolv R earbuds charge their batteries automatically when placed inside the charging case, this is indicated by the LED lights on the earbuds. Make sure to first remove the protective film which is covering the charging connectors.

The Tolv R case is charged with a Micro-USB cable. When the case is charging, you will see the left light in the back of the charging case. It is recommended to use the Sudio Micro-USB cable that's included in the package, but the charging case may be compatible with third-party Micro-USB cables as well.

Restoring Tolv R to factory settings

Jump to complete guide

If Tolv R is behaving unexpectedly or you simply wish to restore it to its original settings, then you can reset it. You may then proceed with pairing Tolv R again.

Tolv R - User guide - Connectivity & Pairing

Pairing Tolv R with a device


  1. Remove the Tolv R earbuds from the charging case and fit them inside your ears. If you want to use both, then make sure to lift the second earbud within 15 seconds of lifting the first one.
  2. Go into the Bluetooth settings on your device. The Tolv R earbud LED lights are flashing white and red while scanning for available devices.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Tolv R in the Bluetooth list on your device.
  4. When paired you will hear the audio feedback 🔈 Device Connected.

If you would like to use only one of the earbuds, you can do so by just taking out the one you want to use from the charging case. Then proceed with connecting the earbud to either "Sudio Tolv R" (Right) or "Sudio Tolv R - L" (Left).

If Tolv R has previously been paired with your preferred device, simply remove the earbuds from the charging case and they will automatically connect, so long as Bluetooth is activated on the device and Tolv R has not been paired with a different device more recently.

Device compatibility

Tolv R uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Tolv R and connected device outdoors to see if the interference clears.

Tolv R can be up to a maximum of 15 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Tolv R - User guide - Button controls

Tolv R has a control button on each earbud that allows you to control certain features on your paired device.

Some apps, however, may not be compatible with the button controls. In this case, you are only able to control playback and calls via the paired device.

Music/video playback


  • Press once on either earbud (left or right) to play or pause
  • Press twice on the left earbud to rewind
  • Press twice on the right earbud to go forward

Incoming phone calls


  • Press once on either earbud (left or right) to accept a phone call
  • Press (hold) for three seconds on either earbud (left or right) to reject or end a phone call

Power

Tolv R powers on and off automatically when the earbuds are taken out or put back inside the case. However, you can also control this without using the charging case.

  • Press (hold) for five seconds on either earbud (left or right) to power on (single earbud)
  • Press (hold) for five seconds on either earbud to power off (single earbud). After 5 seconds the listening mode will change, followed by 🔈 Power Off.

Tolv R - User guide - Factory reset

If Tolv R starts behaving unexpectedly, or if you wish to remove the connection between Tolv R and the connected device, you can perform a factory reset to restore your Sudio Tolv R to its original settings. This will reset the connection between your paired devices, as well as the connection between the two earbuds.

  1. Disconnect Sudio Tolv R from all previously connected devices, most often by clicking on the "Forget" button.
  2. Turn off both earphones by pressing and holding both buttons for 6 seconds.
  3. Start the earphones again by pressing and holding both sides for 13 seconds, until the lights stop blinking.
  4. Put the earphones back in the case and wait for 3 minutes.
  5. The factory reset is complete.

Then you can start to pair them:

  1. Lift both earphones from the charging case at the same time (do not lift one by one, but both at the same time) and they will be in pairing mode.
  2. Select 'Sudio Tolv R' in the Bluetooth list on your device.

After the factory reset, if you're seeing multiple Tolv R devices in your Bluetooth list, such as "Sudio Tolv R" and "Sudio Tolv R-L", it could be caused by having pressed the buttons directly after taking them out of the charging case, or not taking both earbuds out at the same time.

Tolv R pairs automatically when you take them out of the case, so avoid clicking on the buttons after you have performed the factory reset.

Tolv R - User guide - Battery levels and management

Tolv R has three built-in batteries; one inside the charging case and one in each earbud. The battery inside the case is used to charge the earbuds, while the included Micro-USB cable is used to charge the case.

Charging and play times

The earbuds can be used for approximately 5,5 hours on one charge, with up to 22 hours in total before the case needs to be recharged.

Each battery takes approximately 90 minutes to fully charge. Also 10 minutes of charging gives 1 hour of playtime.

Charging methods

The Tolv R case can only be charged with a Micro-USB cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

There are two LED lights on the back of the charging case. The left LED light indicates the battery level of the case. The right LED light indicates the battery level of the earbuds.

Charging case (left LED light)

  • White (fixed): 70-100% battery remaining. The charging case can fully charge the earbuds 3 to 4 times.
  • White (blinking): 40-70% battery remaining. The charging case can fully charge the earbuds 1 to 2 times.
  • Red (fixed): 10-40% battery remaining. The charging case can fully charge the earbuds up to 1 time.
  • Red (blinking): 0-10% battery remaining. The charging case is running out of battery and needs to be charged with a cable.

Tolv R - User guide - Care and cleaning

Cleaning your earphones on a regular basis will ensure the best possible sound performance and prevent them from wearing out sooner than expected.

Use only a slightly damp cloth when cleaning the earbuds and/or case. You can also use a fine brush or cotton swab to gently clean the earbuds and inside the case, avoiding damage to the charging connectors (copper pins). Avoid using alcohol or chemicals, as this can damage the rubber coating on the earbuds and case. In some cases, being exposed to strong sunshine or high heat might alter the form of the silicon material.

Psst, the Sudio Care Kit is ideal for regular maintenance and includes all the tools you need to keep your Sudio earphones in shape!

Light-colored earphones always need to be treated with a bit of extra care.

Keep in mind that with time, some discoloration may eventually appear. This is most common if the earbuds or charging case continue to come in contact with dirty surfaces or materials over extended periods of time.

Femtio

Femtio - User Guide - First-time setup


Congratulations on receiving your new Femtio! Use this guide to learn about pairing Femtio with your preferred device, charging the battery, and restoring the speaker to its factory settings.

What's included in the box


  • Femtio speaker
  • Type-C USB-cable
  • Owners manual

Before getting started

The speaker will likely have some existing battery charge, however it is recommended to fully charge Femtio before using it for the first time.

Turning Femtio on or off

Press (hold) the power button for two seconds to turn on/off your Femtio.

Pairing with a device


Jump to complete guide

Femtio will automatically be in pairing mode after having been turned on by pressing the power button for two seconds. The light on the far right will start flashing white quickly.

Open the Bluetooth settings on your device and wait for Femtio and the device to locate each other, then select Sudio Femtio when it appears in the list.

Once connected, the light will flash white every 3 seconds (in some models the light is turned off).

Charging the battery

Jump to complete guide

Femtio has one built-in battery inside the speaker.

Femtio is charged with a Type-C USB-cable. It is recommended to use the Sudio Type-C USB-cable that's included in the package, but the charging case may be compatible with third-party Type-C USB-cables as well.

There are five LED-lights right above the ‘SUDIO’ logo that indicate the speaker's battery remaining level. The four LED lights on the left side indicate the battery status of your Femtio.

Restoring Femtio to factory settings

Jump to complete guide

If Femtio is behaving unexpectedly or you simply wish to restore it to its original settings, then you can reset it. You may then proceed with pairing Femtio again.

Femtio - User guide - Connectivity & Pairing

Pairing Femtio with a device


  1. Turn on your Femtio by holding the power button for 2 seconds.
  2. Go into the Bluetooth settings on your device. Femtio will automatically be in pairing mode and the light on the far right will start flashing white quickly.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Femtio in the Bluetooth list on your device.
  4. Once connected, the light will flash white every 3 seconds (in some models the light is turned off).

Device compatibility

Femtio uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or moving your Femtio and connected device away (outdoors or to a different room) to see if the interference clears.

Femtio can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Pairing with multiple devices

If you have connected your device to Femtio and want to connect a different device to the speaker, you have to reset the wireless connection first, then pair a new device with Femtio. Please follow the steps below.

1. Turn on Femtio by pressing the power button for 2 seconds.

2. Press and hold the button on the far left for two seconds to reset the connection. Femtio will be disconnected from the device you were using.

3. It is now ready to connect a different device to the speaker. Start pairing with your new device, you can find the pairing guide here

4. Once connected, you can play music using your new device.

Femtio - User guide - Button controls

Music/video playback

  • Press (hold) the ‘+’ button for 2 seconds to jump forward to the next song
  • Press (hold) the ‘-’ button for 2 seconds to go back to the previous song

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) once to decrease the volume and repeat it until you reach your preferred volume.

Incoming phone calls

You can answer the incoming call using either your phone or Femtio.

  • Press the pause/play button once to answer/end the phone call from Femtio
  • Press (hold) the pause/play button for 2 seconds to reject a phone call
  • Press (hold) the pause/play button for 2 seconds while answering the call to switch the audio from your phone to the speaker and vice versa,

Power

  • Press (hold) the power button for two seconds to turn on/off your Femtio.

Siri or Google Assistant

  • Press (hold) the pause/play button for 2 seconds to activate voice assistants such as Siri and Google Assistant


Femtio - User guide - Factory reset

If your speaker is behaving unexpectedly or you are having difficulty pairing, we recommend you do a factory reset.

Before you start, please check the serial number of your product which can be found on the back of the product packaging, and typically near a barcode. Serial numbers are a unique sequence of numbers that are around 11-digit long. After checking your serial number, please follow the steps corresponding to your model.

If your serial number starts with 31 or 503, follow these instructions:
1. Go into the wireless connection settings and “forget” Femtio on all connected devices. Femtio will no longer be synced.
2. Turn off the speaker.
3. Press and hold the power button for 10 seconds.
4. Femtio is now reset. Turn it on to pair your device by following the “How to pair Femtio with a device” step.

If your serial number starts with other numbers, follow these instructions:

  1. Press the leftmost button and minus button together for 3 seconds.
  2. Femtio is now reset. Turn it on to pair your device by following the "How to pair Femtio with a device" step.




Femtio - User guide - Battery levels and management

Femtio has one built-in battery inside the speaker.

Charging and play times

The speaker can be used for approximately 14 hours on one charge.

The battery takes approximately 4 hours to fully charge. Femtio also supports quick charge, restoring 1 hour of playtime after 15 minutes of charging and 12 hours of playtime after 2 hours of charging.

Charging methods

Femtio can only be charged with a Type-C USB-cable. We recommend using the Sudio cable included in the package, however, other third-party Type-C USB-cables may be compatible too.

Battery level indicators


There are five LED-lights right above the ‘SUDIO’ logo that indicate the speaker's battery remaining level. The four LED lights on the left side indicate the battery status of your Femtio.

If you would like to check the battery status of your Femtio, please press the power button once.

100%: All four lights are on
75% - 99% battery level: Three white lights are on, the fourth one flashes
50% - 75% battery level : Two lights are on, the Third one flashes
25% - 50% battery level: One light is on, the Second one flashes
0% - 25% battery level: One light flashes

Femtio - User guide - Care and cleaning

Please clean Femtio with a lightly damp cloth and then with water. Do not use any alcohol or other chemical products to clean Femtio.



Elva

Elva - User guide - Connectivity & Pairing

Pairing Elva with a device

  1. Press the middle button on your Elva for 5 seconds. After you hear 🔈 Power On, continue holding the middle button until you hear a beep and the audio feedback 🔈 Pairing. Your Sudio Elva will then enter pairing mode.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Elva in the Bluetooth list on your device.
  4. Your Sudio Elva has now successfully paired with your device.

Device compatibility

Elva uses Bluetooth version 5.0 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or taking your Elva and connected device outdoors to see if the interference clears.

Elva can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Elva - User guide - Button controls

Elva has three control buttons that allow you to control certain features on your paired device.

Some apps, however, may not be compatible with the button controls. In this case, you are only able to control playback and calls via the paired device.


Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) for two seconds the button on the charging port side to go forward
  • Press (hold) for two seconds the button on the other side to rewind

Volume

  • Press the button on the charging port side once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button on the other side once to decrease the volume and repeat it until you reach your preferred volume.

Active Noise Cancellation (ANC)

  • Press the middle button twice quickly to turn on/off ANC on your Sudio Elva. You will hear "Noise cancelling" when you activate ANC and the earbud will beep when you turn it off.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Power

  • Press (hold) the middle button for five seconds to power off your Elva. After 5 seconds the listening mode will change, followed by 🔈 Power Off.

Siri or Google Assistant

  • Press (hold) the middle button for one second to active Siri or Google assistant.



Elva - User guide - Factory reset

If your Sudio Elva is behaving unexpectedly, we recommend a factory reset to delete all settings and pairing data. Please follow the instructions below and pair Sudio Elva with your device again.

  1. Remove/"Forget" Sudio Elva in the Bluetooth list of all devices that you have previously connected Elva to.
  2. Turn off Bluetooth on your device entirely.
  3. Press the buttons on each side at the same time, and hold for 5 seconds. (See image below)
  4. The factory reset for your Sudio Elva is now complete, and you can pair it with your device again.


Elva - User guide - Battery levels and management

Elva has one built-in battery in the main body of the earphones.

Charging and play times

The earbuds can be used for approximately 11 hours on one charge, 10 hours if the ANC is on.

The battery takes approximately 120 minutes to fully charge. Sudio Elva also supports quick charge, 15 minutes of charging gives 1 hour of playtime.

Charging methods


The Elva can be charged with a USB-A to C cable included in the packaging.

You can also charge your Sudio Elva by simply pulling off the part of the control panel which has 3 buttons on, and connecting it directly to your PC or laptop.

Battery level indicators

When the battery level is low, the LED light indicator on the back of the controller will glow red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.

Elva - User guide - Download PDF version
Elva - Features - Active Noise Cancellation (ANC)

Elva features two audio modes that let you decide what you want to hear - and what you don't want to hear. These two modes are called Active Noise Cancellation (ANC), and Normal (Off) mode.

The Active Noise Cancellation (ANC) mode in Elva reduces outside noise which allows you to fully immerse yourself in your own world.

How to switch between the modes

The earbuds are in Normal (Off) mode by default, where background noise is neither reduced nor amplified. By pressing the middle button twice quickly you can turn on/off ANC on your Sudio Elva. You will hear "Noise cancelling" when you activate ANC and the earbud will beep when you turn it off.

Vasa Blå

Vasa Blå - User guide - Connectivity & Pairing

Pairing Vasa Blå with a device


  1. Hold the middle button on your Vasa Blå for 5-8 seconds. The first blue flash means that your headphones are now turned on. Keep pressing the button until you see the red flash - this means the headphones are now ready to pair with your device.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Vasa Blå in the Bluetooth list on your device.
  4. Once connected, the earphones will flash blue every 8 seconds or so.
  5. Your Sudio Vasa Blå is now paired with your device.
  6. To turn off your headphones, hold the middle button for 7 seconds. It will flash blue, this means the earphones are now turned off.

Device compatibility

Vasa Blå uses Bluetooth version 4.1 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Vasa Blå and connected device outdoors to see if the interference clears.

Vasa Blå can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.



Vasa Blå - User guide - Button controls

Vasa Blå has three control buttons that allow you to control certain features on your paired device.




Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) the button labeled (+) for two seconds to go to the next song.
  • Press (hold) the button labeled (-) for two seconds to go back to the previous song.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) once to decrease the volume and repeat it until you reach your preferred volume.

Power


  • Press (hold) the middle button for three seconds to power on your Vasa Blå. The light will be flashing blue, this means the earphones are turned on.
  • Press (hold) the middle button for five seconds to power off your Vasa Blå. The blue light will turn off, this means the earphones are turned off.

Siri or Google Assistant

  • Press the middle and upper buttons (VOLUME +) simultaneously to activate Siri or Google assistant.
  • Press the middle and upper buttons (VOLUME +) simultaneously again to deactivate Siri or Google assistant.

Vasa Blå - User guide - Battery levels and management

Vasa Blå has one built-in battery in the main body of the earphones.

Charging and play times

The earphones can be used for approximately 9 hours on one charge.

The battery takes approximately 120 minutes to fully charge. Vasa Blå also supports quick charge, 10 minutes of charging gives 1 hour of playtime.

Charging methods

Vasa Blå can be charged with a Micro-USB cable included in the packaging.

We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

When the battery level is low, the LED light indicator on the headphones will start flashing red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.



Vasa Blå - User guide - Download PDF version
Vasa Blå - Features - Tangle-free Cord


Sudio Vasa Blå features a tangle-free cord, so you can spend more time enjoying your favorite music instead of dealing with Gordian knots!

Vasa Blå - FAQ - What to do if Vasa Blå is not charging

If the red light fails to shine when attached to your charger, then there is a chance there could be a battery issue within your earphones, your charging cord, or your charging port.

  • Make sure you are using the charging cable included with Vasa Blå. You can also try using a different micro USB cable if you have one accessible, however we cannot guarantee that all third-party micro USB cables are compatible.
  • Make sure the cable is fully inserted into the earphones and that there is no dust or dirt blocking the port.
  • Try to get power from a different source i.e. laptop USB port or from a wall outlet.

The battery meter on your phone reads in increments of 20%. So it will go from 100, 80, 60, etc.

Tre/Tretton

Tre/Tretton - User guide - Connectivity & Pairing

Pairing Tre/Tretton with a device


  1. Press the middle button on your Tre/Tretton for 5-8 seconds. The first blue flash means that your earphones are turned on. Keep pressing the button until you see the red flash - this means the earphones are ready to pair with your device.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Tre/Tretton in the Bluetooth list on your device.
  4. Your Sudio Tre/Tretton is now paired with your device.
  5. Once connected, the earphones will flash blue approximately every 8 seconds.
  6. To turn off your earphones, hold the middle button for 7 seconds. It will flash blue, this means the earphones are turned off.

Device compatibility

Tre/Tretton uses Bluetooth version 4.1 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or taking your Tre/Tretton and connected device outdoors to see if the interference clears.

Tre/Tretton can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Tre/Tretton - User guide - Button controls

Tre/Tretton has three control buttons that allow you to control certain features on your paired device.


Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) the button labeled (+) for two seconds to go to the next song.
  • Press (hold) the button labeled (-) for two seconds to go back to the previous song.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) once to decrease the volume and repeat it until you reach your preferred volume.

Power


  • Press (hold) the middle button for three seconds to power on your Tre/Tretton. The light will be flashing blue, this means the earphones are turned on.
  • Press (hold) the middle button for five seconds to power off your Tre/Tretton. The blue light will turn off, this means the earphones are turned off.

Siri or Google Assistant

  • Press the middle and upper buttons (VOLUME +) simultaneously to activate Siri or Google assistant.
  • Press the middle and upper buttons (VOLUME +) simultaneously again to deactivate Siri or Google assistant.

Tre/Tretton - User guide - Battery levels and management

Tre/Tretton has one built-in battery in the main body of the earphones.

Charging and play times

The earphones can be used for approximately 9 hours on one charge.

The battery takes approximately 120 minutes to fully charge. Tre/Tretton also supports quick charge, 10 minutes of charging gives 1 hour of playtime.

Charging methods

The Tre/Tretton can be charged with a Micro-USB cable included in the packaging.

We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

When the battery level is extremely low, the LED light indicator on the headphones will start flashing red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.

Tre/Tretton - User guide - Download PDF version
Tre/Tretton - FAQ - What to do if Tre/Tretton is not charging

If the red light fails to shine when attached to your charger, then there is a chance there could be a battery issue within your earphones, your charging cord, or your charging port.

  • Make sure you are using the charging cable included with Tre/Tretton. You can also try using a different micro USB cable if you have one accessible, however we cannot guarantee that all third-party micro USB cables are compatible.
  • Make sure the cable is fully inserted into the earphones and that there is no dust or dirt blocking the port.
  • Try to get power from a different source i.e. laptop USB port or from a wall outlet.

The battery meter on your phone reads in increments of 20%. So it will go from 100, 80, 60, etc.

  •

Tio

Tio - User guide - Connectivity & Pairing

Pairing Tio with a device


  1. Hold the middle button on your Tio for 5-8 seconds. The first blue flash means that your headphones are turned on. Keep pressing the button until you see the red flash - this means the headphones are ready to pair with your device.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Tio in the Bluetooth list on your device.
  4. Once connected, the earphones will flash blue every 8 seconds or so.
  5. Your Sudio Tio is now paired with your device.
  6. To turn off your headphones, hold the middle button for 7 seconds. It will flash blue, this means the earphones are now turned off.

Device compatibility

Tio uses Bluetooth version 4.2 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or taking your Tio and connected device outdoors to see if the interference clears.

Tio can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Tio - User guide - Button controls

Tio has three control buttons that allow you to control certain features on your paired device.


Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) the button labeled (+) for two seconds to go to the next song.
  • Press (hold) the button labeled (-) for two seconds to go back to the previous song.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) once to decrease the volume and repeat it until you reach your preferred volume.

Power


  • Press (hold) the middle button for three seconds to power on your Tio. The light will be flashing blue, this means the earphones are turned on.
  • Press (hold) the middle button for five seconds to power off your Tio. The blue light will turn off, this means the earphones are turned off.

Siri or Google Assistant

  • Press the middle and upper buttons (VOLUME +) simultaneously to activate Siri or Google assistant.
  • Press the middle and upper buttons (VOLUME +) simultaneously again to deactivate Siri or Google assistant.

Tio - User guide - Battery levels and management

Tio has one built-in battery in the main body of the earphones.

Charging and play times

The earphones can be used for approximately 9 hours on one charge.

The battery takes approximately 120 minutes to fully charge. Tio also supports quick charge, 10 minutes of charging gives 1 hour of playtime.

Charging methods

The Tio can be charged with a Micro-USB cable included in the packaging.

We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

When the battery level is low, the LED light indicator on the headphones will start flashing red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.

Tio - User guide - Download PDF version
Tio - FAQ - What to do if Tio is not charging

If the red light fails to shine when attached to your charger, then there is a chance there could be a battery issue within your earphones, your charging cord, or your charging port.

  • Make sure you are using the charging cable included with Tio. You can also try using a different micro USB cable if you have one accessible, however we cannot guarantee that all third-party micro USB cables are compatible.
  • Make sure the cable is fully inserted into the earphones and that there is no dust or dirt blocking the port.
  • Try to get power from a different source i.e. laptop USB port or from a wall outlet.

The battery meter on your phone reads in increments of 20%. So it will go from 100, 80, 60, etc.

Regent/Regent II

Regent/Regent II - User Guide - First-time setup


Congratulations on receiving your new pair of Regent/Regent II! Use this guide to learn about pairing Regent/Regent II with your preferred device and charging the battery.

What's included in the box


  • Regent/Regent II headphones
  • Micro-USB cable
  • An auxiliary cord
  • Owners manual

Before getting started

The headphones will likely have some existing battery charge, however it is recommended to fully charge Regent/Regent II before using it for the first time.

Turning Regent/Regent II on or off

Press (hold) the middle button for five seconds until the blue light is blinking to power on your Regent/Regent II.

If you want to turn off your Regent/Regent II then press (hold) the middle button for five seconds until the blue light turns off.

Pairing with a device


Jump to complete guide

Hold the middle button on your Regent/Regent II for 5-8 seconds. The first blue flash means that your headphones are now turned on. Keep pressing the button until you see the red flash - this means the headphones are now ready to pair with your device.

Open the Bluetooth settings on your device and wait for Regent/Regent II and the device to locate each other, then select Sudio Regent/Regent II when it appears in the list. Once connected, the earphones will flash blue every 8 seconds or so.

Charging the battery

Jump to complete guide

Regent/Regent II has one built-in battery in the headphones.

Regent/Regent II is charged with a Micro-USB cable. It is recommended to use the Sudio Micro-USB cable that's included in the package, but the charging case may be compatible with third-party Micro-USB cables as well.

Regent/Regent II - User guide - Connectivity & Pairing

Pairing Regent/Regent II with a device


  1. Hold the middle button on your Regent/Regent II for 5-8 seconds. The first blue flash means that your headphones are turned on. Keep pressing the button until you see the red flash - this means the headphones are ready to pair with your device.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Regent in the Bluetooth list on your device.
  4. Once connected, the earphones will flash blue approximately every 8 seconds.
  5. Your Sudio Regent/Regent II is now paired with your device.
  6. To turn off your headphones, hold the middle button for 3-4 seconds. It will flash red, this means the earphones are now turned off.

Device compatibility

Regent/Regent II uses Bluetooth version 4.1 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or take your Regent/Regent II and connected device outdoors to see if the interference clears.

Regent/Regent II can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Regent/Regent II - User guide - Button controls

Regent/Regent II has three control buttons that allow you to control certain features on your paired device.

Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) the button labeled (+) for two seconds to go to the next song.
  • Press (hold) the button labeled (-) for two seconds to go back to the previous song.

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) to decrease the volume and repeat it until you reach your preferred volume.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Power


  • Press (hold) the middle button for three seconds until the blue light is blinking to power on your Regent/Regent II.
  • Press (hold) the middle button for three seconds until the blue turns off to power off your Regent/Regent II.

Siri

Siri needs to be activated on your device first. You can give the command "Hey Siri" through the earphone's microphone once Siri is activated.



Regent/Regent II - User guide - Battery levels and management

Regent/Regent II has one built-in battery in the headphones.

Charging and play times

The headphones can be used for approximately 24 hours on one charge.

The battery takes approximately 120 minutes to fully charge. Regent II also supports quick charge, 10 minutes of charging gives 1 hour of playtime.

Charging methods

The Regent/Regent II can be charged with a Micro-USB cable included in the packaging.

We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

When the battery level is low, the LED light indicator on the headphones will start flashing red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.



Regent/Regent II - User guide - Download PDF version
Regent/Regent II - Features - Passive Noise Isolation


Passive noise isolation is when devices are made to naturally block outside noise instead of actively doing it with noise cancelling technology. When headphones are designed to the exact shape of your ears, they prevent outside ambient noise from entering your ears. Whether you are walking down a busy street or if you are in a busy store you can still listen to music at a lower volume level because you don’t have to counteract the sounds of your environment.

Klar

Klar - User Guide - First-time setup


Congratulations on receiving your new pair of Klar! Use this guide to learn about pairing Klar with your preferred device and charging the battery.

What's included in the box


  • Klar headphones
  • Micro-USB cable
  • An auxiliary cord
  • Owners manual

Before getting started

The headphones will likely have some existing battery charge, however it is recommended to fully charge Klar before using it for the first time.

Turning Klar on or off

Press (hold) the middle button for five seconds until the blue light is blinking to power on your Klar.

If you want to turn off your Klar then press (hold) the middle button for five seconds until the blue light turns off.

Pairing with a device


Jump to complete guide

Hold the middle button on your Klar for 5-8 seconds. The first blue flash means that your headphones are now turned on. Keep pressing the button until you see the red flash - this means the headphones are now ready to pair with your device.

Open the Bluetooth settings on your device and wait for Klar and the device to locate each other, then select Sudio Klar when it appears in the list. Once connected, the earphones will flash blue every 8 seconds or so.

Charging the battery

Jump to complete guide

Klar has one built-in battery in the headphones.

Klar is charged with a Micro-USB cable. It is recommended to use the Sudio Micro-USB cable that's included in the package, but the charging case may be compatible with third-party Micro-USB cables as well.

Klar - User guide - Connectivity & Pairing

Pairing Klar with a device


  1. Hold the middle button on your Klar for 5-8 seconds. The first blue flash means that your headphones are now turned on. Keep pressing the button until you see the red flash - this means the headphones are now ready to pair with your device.
  2. Go into the Bluetooth settings on your device.
    • For iOS (iPhone), go to the Settings app and select Bluetooth.
    • For Android, go to the Settings app, then select Connections followed by Bluetooth.
    • For Windows 10, click on the Start button, select Settings followed by Devices, and then Bluetooth and other devices.
    • For macOS, go to the System Preferences app and select Bluetooth.
  3. Locate and select Sudio Klar in the Bluetooth list on your device.
  4. Once connected, the earphones will flash blue every 8 seconds or so.
  5. Your Sudio Klar is now paired with your device.
  6. To turn off your headphones, hold the middle button for 3-4 seconds. It will flash red, this means the earphones are now turned off.

Device compatibility

Klar uses Bluetooth version 4.1 which is compatible with a wide range of Bluetooth devices. The paired device does not need to be the same version, but similar versions are more likely to maintain a strong connection.

Signal interference

Some wireless devices may interfere with each others' signals, such as WiFi-routers, smartwatches, other Bluetooth devices, etc. If they operate within the same frequency, you may experience interference such as dropped sound and glitching. The easiest way to locate the cause of interference is by maintaining one connection between devices at the same time or taking your Regent/Regent II and connected device outdoors to see if the interference clears.

Klar can be up to a maximum of 10 meters (49 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Klar - User guide - Button controls

Klar has three control buttons that allow you to control certain features on your paired device.

Music/video playback

  • Press the middle button once to pause/play music.
  • Press (hold) the button labeled (+) for two seconds to go to the next song.
  • Press (hold) the button labeled (-) for two seconds to go back to the previous song.

Volume

  • Press the button labeled (+) once to increase the volume and repeat it until you reach your preferred volume.
  • Press the button labeled (-) to decrease the volume and repeat it until you reach your preferred volume.

Incoming phone calls

  • Press the middle button once to accept or to end a phone call
  • Press (hold) the middle button for two seconds to reject an incoming phone call

Power


  • Press (hold) the middle button for five seconds until the blue light is blinking to power on your Klar.
  • Press (hold) the middle button for five seconds until the blue turns off to power off your Klar.

Active Noise Cancellation (ANC)


  • Press the button marked “ANC” to activate. The green light will indicate that ANC is on.

Siri

Siri needs to be activated on your device first. You can give the command "Hey Siri" through the earphone's microphone once Siri is activated.

Klar - User guide - Battery levels and management

Klar has one built-in battery in the headphones.

Charging and play times

The headphones can be used for approximately 30 hours on one charge.

The battery takes approximately 120 minutes to fully charge. Klar also supports quick charge, 10 minutes of charging gives 1 hour of playtime.

Charging methods

Klar can be charged with a Micro-USB cable included in the packaging.

We recommend using the Sudio cable included in the package, however, other third-party Micro-USB cables may be compatible too.

Battery level indicators

When the battery level is extremely low, the LED light indicator on the headphones will start flashing red.

Battery life status will be indicated on your smartphone for iOS and most Android devices. Since phone manufacturers have various Android devices that work differently, you can also download various battery apps on the Google Play Store.

Klar - User guide - Download PDF version
Klar - Features - Active Noise Cancellation (ANC)


Klar features two audio modes that let you decide what you want to hear - and what you don't want to hear. These two modes are called Active Noise Cancellation (ANC), and Normal (Off) mode.

The Active Noise Cancellation (ANC) mode in Klar reduces outside noise which allows you to fully immerse yourself in your own world.

How to switch between the modes

The earbuds are in Normal (Off) mode by default, where background noise is neither reduced nor amplified. By pressing the “ANC” marked button the green light will indicate that ANC is on. Press on the button again to turn ANC off.

How does Active Noise Cancellation (ANC) work?

The mechanics behind Active Noise Cancellation is in its name. The built-in microphones on Klar listen to the noise outside and inside the headphones while using the speaker to emit the same noise - but inverted - which reduces the outside noise nearly entirely. Klar uses Hybrid ANC technology, which is a combination of Feed Forward and Feedback ANC technology.

Flyg

Flyg - User Guide - What is Sudio Flyg

Sudio Flyg is a wireless connection adapter that allows you to connect your wireless earphones with analog audio devices.

It contains a transmitter that can turn any audio signal from a device with a 3.5mm headphone jack or double 3.5mm flight audio socket into a wireless signal.

Sudio Flyg lets you enjoy a seamless listening experience with devices such as portable gaming devices, in-flight entertainment, and television screens.


Flyg - User Guide - Connectivity & Pairing

Pairing Flyg with Sudio Elva

First, you need to pair your Sudio Elva with Sudio Flyg. Once they are paired, you are ready to connect Sudio Flyg to any audio device.

  1. Make sure there are no other wireless connection-activated devices around you to prevent Sudio Flyg from connecting to the wrong devices.
  2. Press and hold the round button on your Sudio Flyg for 5 seconds until the LED light starts blinking white.
  3. Turn on your Sudio Elva and enter pairing mode by pressing the middle button for 7 seconds.
  4. Keep your Sudio Elva very close (1 to 2 cm) to Flyg.
  5. Once you see the LED light on your Sudio Flyg stop blinking, your Sudio Elva is successfully paired with Sudio Flyg.
  6. Plug Sudio Flyg into the device to which you want to connect Sudio Elva. If there is only one output available, use the main pin.
  7. Your device and Sudio Elva are now successfully connected.


How to plug in Flyg

Flyg has two jacks, which can be used separately or together.

Devices without a wireless connection function that have a 3.5 mm headphone jack including portable gaming devices and televisions can be turned into wireless products by simply plugging Sudio Flyg into a headphone jack.

You can also connect it to in-flight entertainment, where two-pin socket is required most of the time. When there is only one output available, please use the main pin.




Signal interference

Flyg can be up to a maximum of 10 meters (32 ft) from the paired device, but the connection may break if they are blocked by walls or similar objects.

Flyg - User guide - Button controls

Flyg has a control button that allows you to pair it with another device and turn it on/off.

Power

  • Press (hold) for five seconds until the LED shows a steady light to power on Flyg.
  • Flyg will turn off automatically after some time if nothing is transmitted or the earphone is not paired.


Flyg - User guide - Factory reset

If your Sudio Flyg is behaving unexpectedly or you have a problem connecting your earphones to Sudio Flyg, we recommend a factory reset to delete all settings and pairing data.

To reset the connection to your Sudio Flyg, quickly press the button on your Sudio Flyg 3 times.


Flyg - User guide - Battery levels and management

Charging and play times

Flyg can be used for approximately 12 hours on one charge before it needs to be recharged.

It takes approximately 90 minutes to fully charge.

Charging methods

Flyg can only be charged with a Type-C USB-cable, wireless charging is not supported. We recommend using the Sudio cable included in the package, however, other third-party Type-C USB-cables may be compatible too.

While charging the LED on Flyg will turn red.


Battery level indicators

Please press the button on your Sudio Flyg once to see the current battery status.

  • White (fixed): 50-100% battery remaining.
  • Red and white (flashing): 10-50% battery remaining.
  • Red (fixed): Less than 10% battery remaining.


Flyg - User guide - Download PDF version
Powered by Zendesk
